Partial fill is one of the least discussed and most consequential cavity wall insulation problems and solutions in the UK housing stock. Millions of UK homes already have some insulation in their cavities, installed decades ago under earlier government schemes, but not all of it is detectable from the outside, not all of it is complete, and not all surveyors check for it properly before recommending a new installation. When a partial fill goes undetected and an installer fills the cavity over the top of existing material, the results range from poor thermal performance to structural moisture problems.



What Is Partial Fill and Why Does It Exist?

Partial fill refers to a cavity that contains some insulation but not a complete, uniform fill. This situation arises in several ways:



Earlier installation that settled or slumped. Mineral wool cavity insulation installed in the 1980s and 1990s can settle over time, leaving the upper sections of the cavity void. The lower sections remain insulated but the top metre or more may be empty or only partially filled.



Incomplete installation from the original job. Some early installations were carried out under programmes that prioritised speed over quality. Holes were drilled, material was injected, and the installer moved on without confirming full coverage. Areas around lintels, at wall plate level, and in awkward corners were sometimes missed.



Deliberate partial fill from original construction. Some cavity wall properties built from the 1980s onwards were constructed with insulation boards fitted against the inner leaf during building, a construction method called “full fill” or “partial fill” depending on whether the boards span the full cavity or leave a gap. This insulation is built in and does not appear from a surface survey.



Failed injection that did not penetrate the full cavity depth. On properties with internal cross ties or cavity trays that segment the cavity horizontally, injection from a single row of holes may not reach all sections. The installer fills what they can reach but the trays prevent complete coverage.



How Surveys Miss Partial Fill

The standard pre installation survey for cavity wall insulation uses a borescope, a small camera inserted through a drilled hole in the mortar joint, to inspect the cavity. A competent borescope inspection reveals whether insulation is present at the inspection point.



The problem is that a borescope inspection at one point does not tell you what is in the cavity at a different point. A single inspection hole per elevation, the minimum that some surveyors conduct, can miss:



Settlement voids at the top of the cavity. If the inspection hole is drilled at mid wall height, the surveyor sees filled cavity below and may not identify the empty section above.



Insulation boards on the inner leaf. Built in partial fill boards sit against the inner leaf and may not be visible at a standard inspection point on the outer leaf side of the cavity.



Isolated sections separated by cavity trays. On properties with horizontal cavity trays, the section of cavity above the tray may be empty while the section below is filled.



Mortar snots and debris. Accumulations of mortar that fell into the cavity during construction can create local blockages that affect how new insulation fills the space, leaving voids adjacent to the debris.



A thorough survey drills multiple inspection holes at different heights and positions on each elevation, not just one. An installer who uses a single hole per wall and calls it done has not done a proper survey.



What Happens When New Fill Goes Over Old

When an installer injects new insulation into a cavity that already contains settled or partial material, several problems can develop:



Uneven fill and voids. New material injected at standard hole spacing may not penetrate into areas blocked by existing insulation. The result is a cavity with some sections double filled and others still empty.



Pressure build up during injection. If the cavity contains existing insulation that restricts flow, injection pressure can build up behind the blockage. In some cases this forces material into unintended areas, into mortar joints, into the inner leaf, or up past poorly seated cavity trays.



Compromised thermal performance. A cavity that is partially double filled and partially void does not achieve the uniform thermal resistance of a correctly executed installation. Cold spots remain where voids persist and the EPC improvement is less than expected.



Moisture issues. Existing insulation that has absorbed moisture over years, particularly settled mineral wool, can become a moisture reservoir. Injecting new material around wet existing fill does not remove the moisture source and can worsen conditions in the cavity.



Cavity Wall Insulation Problems and Solutions: Diagnosing Partial Fill in Your Property

If you are experiencing unexpectedly high heating bills, cold spots on specific walls, or damp on internal elevations after a cavity wall insulation installation, partial fill is one of several possible explanations. The diagnostic process should include:



Thermal imaging survey. An infrared camera survey of the internal walls in cold weather reveals the pattern of heat loss across the wall face. Cold patches that do not correspond to known features, lintels, wall ties, suggest areas where insulation is absent or performing poorly.



Multiple borescope inspections. Rather than a single inspection per elevation, a thorough investigation drills holes at different heights and positions to map what is actually in the cavity.



Review of installation records. If the installation was carried out under a government scheme, the installer should have filed paperwork with the scheme operator. This can sometimes be obtained and compared against what is actually found in the cavity.



Solutions When Partial Fill Is the Problem

Full Extraction and Reinstallation

Where the existing insulation is wet, degraded, or so unevenly distributed that working around it is impractical, full extraction is the cleanest starting point. Once the cavity is clear, a proper borescope survey maps the cavity accurately and a new specification is produced for the clean cavity.



Extraction costs £1,500 to £4,000 for a typical semi detached house. A subsequent reinstatement with EPS beads adds further cost but produces a reliable, uniform fill.

Targeted Top Up Injection

Where the existing fill is confirmed to be in reasonable condition but has settled, leaving voids in the upper sections, targeted injection at a higher hole position can fill the voids without disturbing the existing material below. This only works where the existing material is dry, in good condition, and the voids are clearly mapped by the inspection.

External Wall Insulation

For properties where the cavity has a complex history of partial or failed fill, EWI offers an alternative that bypasses the cavity entirely. The wall’s thermal performance improves through the external layer, and the cavity, whatever its current state, no longer needs to contribute to the insulation strategy.



Making a Complaint About a Missed Partial Fill

If a CIGA registered installer carried out an installation that failed to identify existing partial fill and the installation has performed poorly or caused damage as a result, CIGA investigates complaints and can fund remedial work where the installation is found to be defective. Cavity wall insulation problems and solutions can usually be easily remedied.



To support a complaint, gather:



Evidence of the existing partial fill. Borescope inspection photographs and a thermal imaging survey report demonstrating uneven fill or cold spots.



Evidence of poor performance. Energy bills showing no reduction after installation, temperature records, or photographs of condensation and damp on internal walls.



Records of the original installation. The installation certificate, guarantee number, and any correspondence with the installer.



CIGA’s investigation involves an independent inspection of the property. If the complaint is upheld, CIGA arranges and funds the remedial work through a registered contractor.



Frequently Asked Questions

How do I know if my cavity already has insulation before getting a new installation? Ask the installer to carry out a thorough borescope inspection at multiple points on each elevation before proceeding. You can also check the national cavity wall insulation database, some past installations are registered, or contact the local authority if the property was previously council owned.



Can partial fill be left in place and topped up safely? Sometimes, if the existing fill is dry, in good condition, and the voids are clearly mapped. This requires a more thorough survey than standard practice and should not be attempted without confidence in the existing material’s condition.



Will a new EPC assessment detect partial fill? No. EPC assessors rely on documentation and visual inspection of accessible features. The presence or absence of cavity insulation is typically determined from existing records or the homeowner’s declaration, not from a physical inspection of the cavity. An EPC can record what the assessor is told but cannot confirm it from observation alone.

Checking your floor insulation alongside is always a good idea.

Have a question? Ask!

Information correct as of April 2026. Always insist on a thorough multi point borescope inspection before any cavity wall insulation installation, particularly if the property has had previous treatment.



Cavity wall insulation does not cause damp in the majority of correctly installed cases, and raises the question does cavity wall insulation cause damp. But it does cause damp in specific, predictable circumstances , and north facing elevations in exposed locations are among the highest risk situations. If you have developed damp on a north facing wall after cavity wall insulation was installed, this article explains why it happens, what the mechanism is, and what can be done about it.



How Cavity Wall Insulation Is Supposed to Work

A cavity wall consists of two leaves of brick or block with a gap between them. The outer leaf faces the weather. The cavity provides a drainage path for any moisture that penetrates the outer leaf , water runs down the cavity face and exits at the base through weep holes or the damp proof course level. The inner leaf stays dry.



Cavity wall insulation fills that gap with mineral wool, EPS beads, or polyurethane foam. In a dry cavity with walls in good condition, the insulation fills the space without creating a moisture pathway. The outer leaf still gets wet, but the water drains down the face of the insulation rather than bridging across to the inner leaf.



This works as intended for the vast majority of UK cavity wall properties. The problem arises when the outer leaf allows more moisture to penetrate than the drainage capacity of the system can handle.



Why North Facing Elevations Are Different

A north facing wall in the UK has specific characteristics that make it more vulnerable than other elevations:



It receives no direct sunlight. Solar radiation is a significant driver of evaporation from brick surfaces. A south facing wall dries rapidly after rain. A north facing wall stays wet for much longer, which means the brickwork is saturated more often and for longer periods.



It faces prevailing wind in many locations. The UK’s prevailing wind is from the south west, which means north facing walls on properties in exposed locations often face directly into the wind. Driving rain on a north facing wall combines horizontal wind force with vertical rainfall to create a much greater volume of water striking the surface than falls vertically.



Mortar joints deteriorate faster. The freeze thaw cycle , water in mortar joints expanding as it freezes and contracting as it thaws , erodes mortar on exposed north facing elevations more rapidly than on sheltered or sunny elevations. Deteriorated mortar joints allow far more water into the outer leaf than sound pointing.



Biological growth increases moisture retention. Algae and moss grow more readily on damp, shaded surfaces. Once established, biological growth on mortar joints and brick faces increases moisture retention, accelerating the degradation that increases water ingress.



These factors combine to mean that a north facing elevation in an exposed location may allow significantly more moisture into the outer leaf than the same wall facing south. In an empty cavity, that moisture drains harmlessly. With insulation in place, the question is whether it reaches the inner leaf.



The Mechanism of Moisture Ingress Through Cavity Insulation

Mineral wool insulation does not wick water across the cavity in the same way that a damp brick bridges moisture. But it can transmit moisture under certain conditions:



Saturation of the insulation. If the volume of water entering through the outer leaf exceeds the drainage capacity , either because the insulation is compressed against the outer leaf in places, because mortar snots or debris on the insulation surface hold water, or because the rate of ingress simply overwhelms drainage , the insulation becomes wet. Wet mineral wool loses most of its thermal resistance and, if continuously wet, can transmit moisture to the inner leaf.



Bridging at cavitiy trays and lintels. Above window and door openings, cavity trays direct water out through weep holes at lintel level. If these trays were not installed correctly, or if the insulation installation bridged the tray, water accumulates above the lintel and tracks inward.



Compromised pointing. Mortar joints in very poor condition allow water to enter the cavity not just through capillary absorption but in volume. At this rate of ingress, the drainage capacity of the insulation system is overwhelmed regardless of exposure.



How to Diagnose Whether Insulation Is the Cause

Not all damp on a north facing wall after cavity wall insulation is caused by the insulation. Other causes include:



Condensation. If the property has increased in air tightness following insulation (which it does, slightly) and ventilation has not improved accordingly, condensation can increase on cold walls. Condensation damp tends to appear at cold bridges , corners, areas with less insulation , and is worse in winter and during humid periods.



Independent damp sources. Leaking gutters or downpipes, a failed damp proof course, improper wall insulation or plumbing leaks can all cause wall damp that is unrelated to the insulation.



Pre existing damp revealed by the insulation. Some properties have historic damp that was masked by cold, dry conditions in the cavity. Filling the cavity with insulation changes the thermal conditions in the wall and can make pre existing moisture migration more visible.



A thermal imaging survey of the internal elevation in cold weather is the most reliable diagnostic tool. A qualified thermographer can distinguish between insulation related moisture bridging, condensation, and other sources of damp from the pattern and characteristics of the thermal signature.



A borescope inspection , inserting a small camera through a drilled hole in the mortar joint , allows visual inspection of the insulation and cavity condition and can confirm whether the insulation is wet or compressed.



What You Can Do About It

Remedial Pointing

If the primary cause of moisture ingress is deteriorated mortar joints, repointing the north facing elevation , using a mortar mix appropriate to the brick type and exposure level , reduces the volume of water entering the outer leaf to a level the insulation system can manage.



This is often the most cost effective first step and can resolve the problem without any intervention to the insulation itself.

Cavity Wall Insulation Extraction

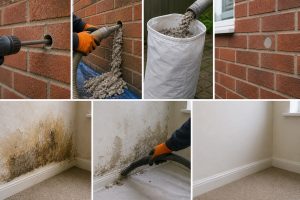

If the insulation is wet, compressed, or otherwise compromised, extraction may be necessary. A specialist contractor drills holes through the outer leaf and vacuums out the insulation material. The holes are re plugged with matching mortar.



After extraction, the cavity returns to its original empty state. The wall should then be assessed for the cause of moisture ingress and any masonry defects addressed before considering whether to re insulate , and if so, with what system.

Replacement with EPS Beads

Where extraction is followed by re insulation, EPS beads are often specified rather than mineral wool on vulnerable elevations. EPS beads do not absorb water and are bonded in place with an adhesive, which prevents slumping over time. They perform better than mineral wool in high moisture environments because they do not lose thermal resistance when wet in the same way.

External Wall Insulation

For properties where cavity insulation has persistently failed and the wall construction and exposure make it unsuitable for re insulation, EWI on the problematic elevation replaces the function of the original cavity system entirely. EWI sits outside the wall and provides a weather resistant barrier that prevents moisture from reaching the cavity or the structural wall.



Before Cavity Wall Insulation Is Installed: What a Good Survey Should Include

If you are considering cavity wall insulation and have a north facing elevation, the survey should assess:



Exposure rating. The surveyor should classify the site exposure using a recognised methodology and determine whether it falls within the suitable range for the chosen system.



Mortar joint condition. The pointing on the north facing elevation specifically should be inspected. Any deteriorated or open joints should be identified as requiring repointing before installation.



Cavity condition. A borescope inspection confirms whether the cavity is clear of debris, has adequate width, and shows any signs of existing moisture.



Existing damp. Any existing damp on the north facing elevation should be investigated before installation, not after.



An installer who does not assess these factors before proceeding on a north facing exposed elevation is taking a risk with your property.



Frequently Asked Questions: Does Cavity Wall Insulation Cause Damp

Should I get cavity wall insulation on a north facing wall? It depends on the condition of the pointing, the exposure level, and the existing cavity condition. A properly conducted survey should give you a clear answer. Do not proceed if the surveyor has not specifically assessed the north facing elevation for moisture risk.



How do I know if my insulation has failed? Damp patches appearing on the internal face of external walls after rainfall, particularly on the north facing elevation, are the primary indicator. A thermal imaging survey and borescope inspection confirm the diagnosis.



Is extraction guaranteed to fix the damp? Extraction removes the moisture pathway through the insulation, but the underlying cause , deteriorated pointing, a failed cavity tray, or another masonry defect , also needs addressing. Extraction without remedying the root cause will not provide a lasting fix.



Can I claim compensation if cavity wall insulation caused damp on my property? If the installation carries a CIGA guarantee, CIGA investigates complaints and can fund remedial work where the installation is found to have caused damage. Raise a formal complaint with CIGA with supporting evidence , survey reports, photographs, and records of when the problem started.

Ask us a question

Information correct as of April 2026. If you suspect cavity wall insulation is causing damp, commission a professional survey before taking any remedial action.
